Introduction

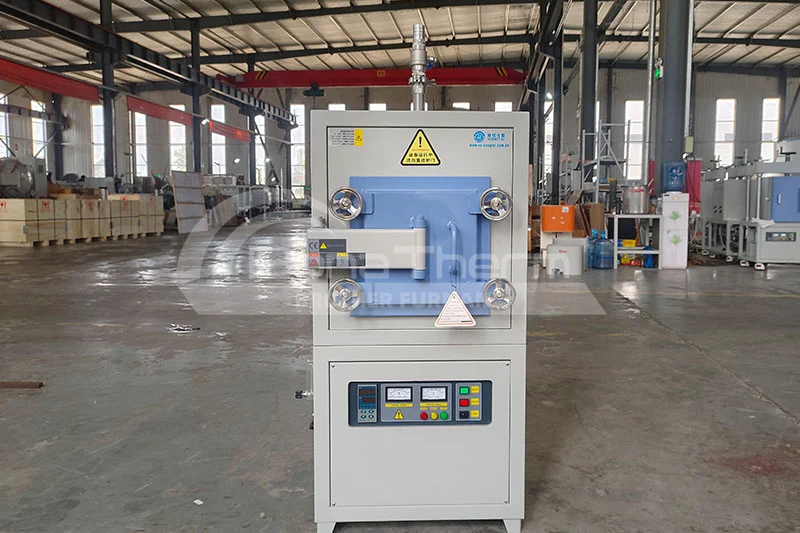

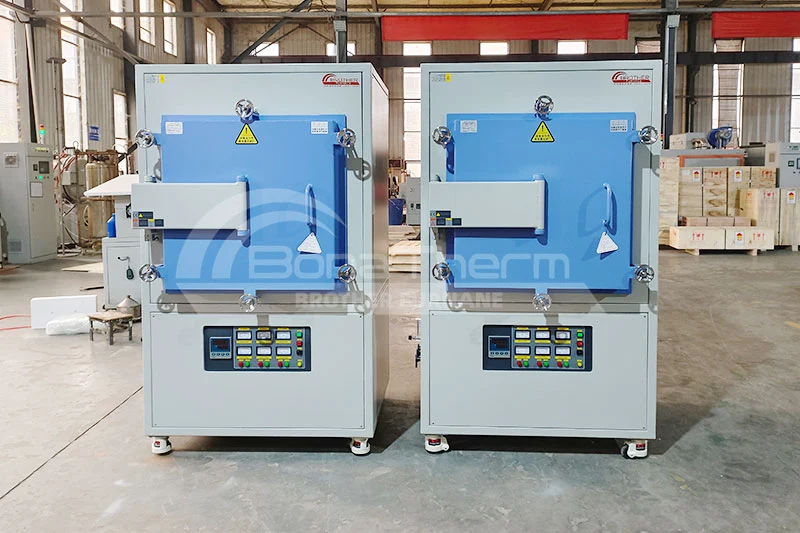

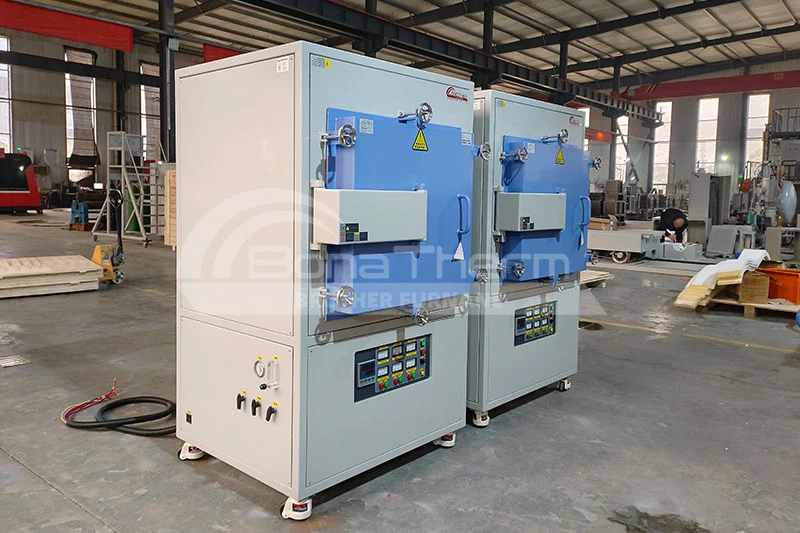

The chamber atmosphere furnace ensures that the oxygen content in the furnace is reduced to a minimum by pre-evacuating. Then inert gases such as nitrogen and argon are introduced to obtain an ideal heat treatment environment under atmosphere protection because its excellent atmosphere environment and compact practicality have been widely used in materials laboratories or small batch production of semiconductors, silicon nitride, and other products.
Features
● RT~1700℃
● The furnace is made of alumina polycrystalline fiber, and the temperature field is balanced and pollution-free.
● Fully enclosed structural furnace, double-layer thickened steel plate, can bear 0.1 Mpa pressure
● The top left, right, and back are made of 12mm solid square steel for reinforcement, and the vacuum is not deformed. The maximum vacuum can be up to -0.08MPa.
● Temperature controlling system adopts industrial precision 0.2-level intelligent instrument, PID adjustment, 50-segment programming
● The furnace door has good sealing performance. Four-hand wheels lock the furnace door, and use the silicone ring to seal.
Standard Accessories
Furnace door fire brick (except 1200 type); high-temperature gloves; tongs; manual; two pcs heating elements (except 1200 type), rotary vane vacuum pump;
Additional accessories
● Direct-connected vacuum pump
● touch screen/computer connection software
● crucible (multi-layer kiln furniture)
● heating element (Sic and MoSi2)
● Air system (float/proton flow meter, 2 / 3 channels of gas)
Technical Parameter
1200 type
Model | Max. Temp. | Chamber size | Voltage | Power |
---|---|---|---|---|
BR-12AN-1 |
1200℃ |
100*100*100mm |
220V |
0.8kW |
BR-12AN-2 |
1200℃ |
120*120*130mm |
220V |
1.2kW |
BR-12AN-3 |
1200℃ |
150*150*150mm |
220V |
2.5kW |
BR-12AN-5 |
1200℃ |
150*150*200mm |
220V |
3kW |
BR-12AN-8 |
1200℃ |
200*200*200mm |
220V |
5kW |
BR-12AN-12 |
1200℃ |
200*200*300mm |
220V |
6kW |
BR-12AN-27 |
1200℃ |
300*300*300mm |
380V |
8kW |
BR-12AN-36 |
1200℃ |
300*300*400mm |
380V |
10kW |
BR-12AN-64 |
1200℃ |
400*400*400mm |
380V |
16kW |
1400 type
Model | Max. Temp. | Chamber size | Voltage | Power |
---|---|---|---|---|
BR-14AS-1 |
1400℃ |
100*100*100mm |
220V |
1kW |
BR-14AS-2 |
1400℃ |
120*120*130mm |
220V |
2kW |
BR-14AS-3 |
1400℃ |
150*150*150mm |
220V |
3kW |
BR-14AS-5 |
1400℃ |
150*150*200mm |
220V |
4kW |
BR-14AS-8 |
1400℃ |
200*200*200mm |
220V |
5kW |
BR-14AS-12 |
1400℃ |
200*200*300mm |
220V |
7kW |
BR-14AS-27 |
1400℃ |
300*300*300mm |
380V |
9kW |
BR-14AS-36 |
1400℃ |
300*300*400mm |
380V |
11kW |
BR-14AS-64 |
1400℃ |
400*400*400mm |
380V |
18kW |
1700 type
Model | Max. Temp. | Chamber size | Voltage | Power |
---|---|---|---|---|
BR-17AM-1 |
1700℃ |
100*100*100mm |
220V |
1kW |
BR-17AM-2 |
1700℃ |
120*120*130mm |
220V |
3kW |
BR-17AM-3 |
1700℃ |
150*150*150mm |
220V |
4kW |
BR-17AM-5 |
1700℃ |
150*150*200mm |
220V |
5kW |
BR-17AM-8 |
1700℃ |
200*200*200mm |
220V |
7kW |
BR-17AM-12 |
1700℃ |
200*200*300mm |
220V |
8kW |
BR-17AM-27 |
1700℃ |
300*300*300mm |
380V |
10kW |
BR-17AM-36 |
1700℃ |
300*300*400mm |
380V |
12kW |
BR-17AM-64 |
1700℃ |
400*400*400mm |
380V |
20kW |
