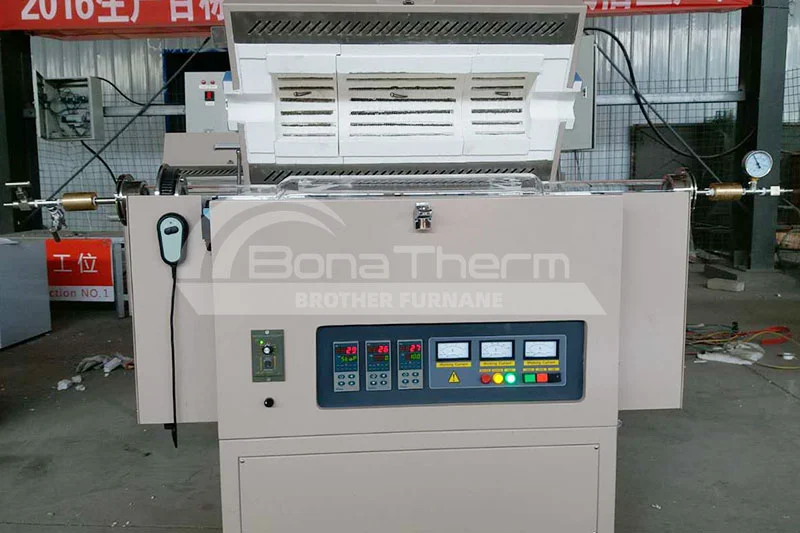

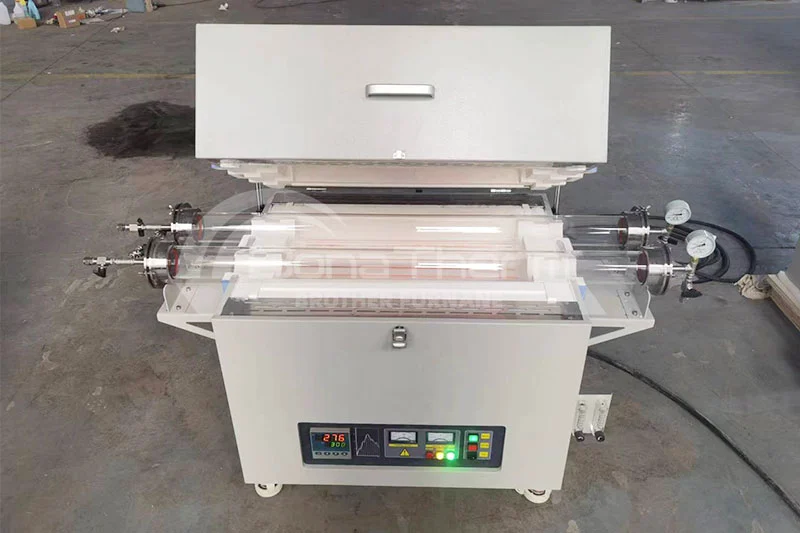

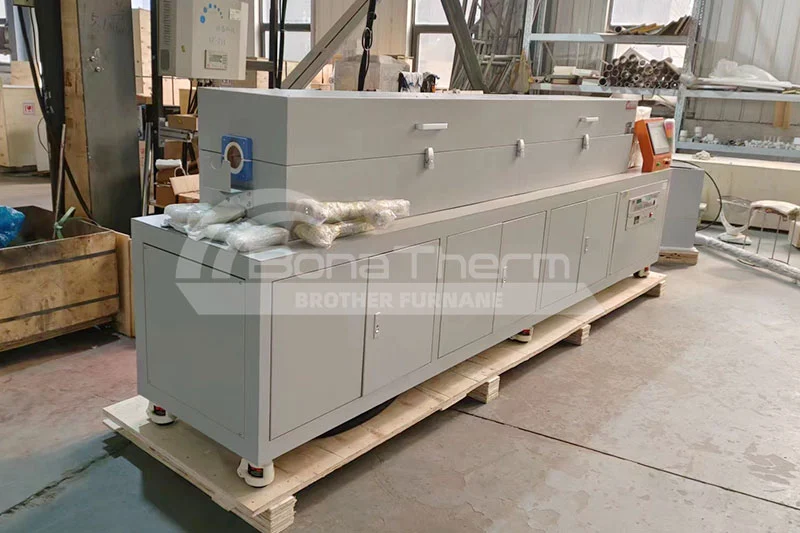

Send EmailIntroduction of Multi-Temperature Zone Tube Furnace
Brother Furnace multi-temperature zone tube furnace (double temperature zone, three temperature zone, five temperature zone), each temperature zone can be independently controlled, mainly suitable for preparatory materials in vacuum or protective atmosphere at various temperature ranges. Firing, sintering, coating, high-temperature pyrolysis, and low-temperature deposition (CVD) process, preparation of carbon nanotubes and silicon nanowires, etc.
 |  |  |
Standard Accessories
4 pipe plugs; 1 thermocouple; 1 furnace tube; 1 vacuum pump.
1 set of vacuum flange; and 1 vacuum pressure gauge.
Technical Parameters of Multi-Temperature Zone Tube Furnace
model | Furnace tube diameter x heating zone length ( mm ) | Power ( kW ) _ | Maximum temperature ( ℃ ) | Working temperature ( ℃ ) | Temperature zone | Thermocouple | Furnace tube material | Heating element |
|---|---|---|---|---|---|---|---|---|
BR-12NT-40/220-2 | 40x220x220 | 5 | 1200 | 1100 | 2 temperature zones | K type | Quartz tube | Molybdenum resistance wire |
BR-12NT-60/220-2 | 60x220x220 | 5 | ||||||
BR-12NT-80/220-2 | 80x220x220 | 6 | ||||||
BR-12NT-100/300-2 | 100x300x300 | 12 | ||||||
BR-12NT-120/300-2 | 120x300x300 | 12 |
model | Furnace tube diameter x heating zone length ( mm ) | Power ( kW ) _ | Maximum temperature ( ℃ ) | Working temperature ( ℃ ) | Temperature zone | Thermocouple | Furnace tube material | Heating element |
|---|---|---|---|---|---|---|---|---|
BR-14ST-40/220-2 | 40x220x220 | 5 | 1400 | 1300 | 2 temperature zones | S type | corundum tube | Silicon carbide rod |
BR-14ST-60/220-2 | 60x220x220 | 5 | ||||||
BR-14ST-80/220-2 | 80x220x220 | 6 | ||||||
BR-14ST-100/300-2 | 100x300x300 | 12 | ||||||
BR-14ST-120/300-2 | 120x300x300 | 12 |
model | Furnace tube diameter x heating zone length ( mm ) | Power ( kW ) _ | Maximum temperature ( ℃ ) | Working temperature ( ℃ ) | Temperature zone | Thermocouple | Furnace tube material | Heating element |
|---|---|---|---|---|---|---|---|---|
BR-16MT-40/220-2 | 40x220x220 | 6 | 1600 | 1500 | 2 temperature zones | Type B | corundum tube | Silicon molybdenum rod |
BR-16MT-60/220-2 | 60x220x220 | 6 | ||||||
BR-16MT-80/220-2 | 80x220x220 | 6 | ||||||
BR-16MT-100/300-2 | 100x300x300 | 12 | ||||||
BR-16MT-120/300-2 | 120x300x300 | 12 |
