• T-Crystal Dental Furnace
  • T-Crystal Dental Furnace

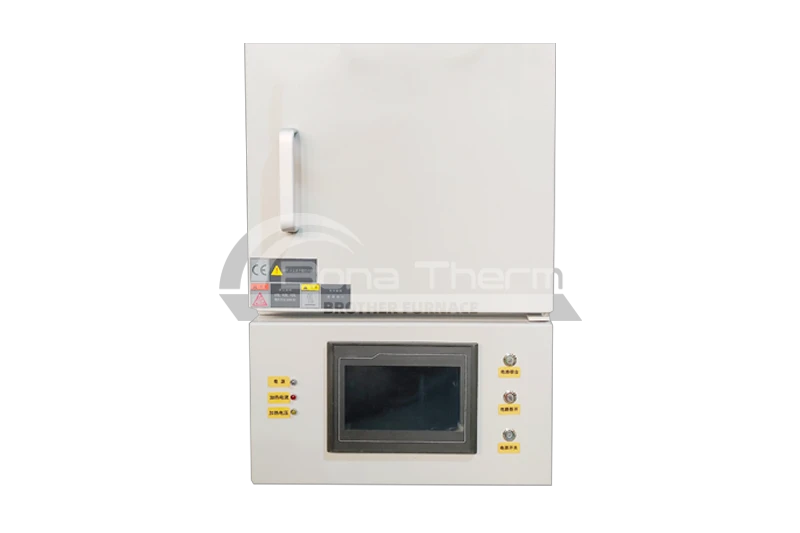

T-Crystal Dental Furnace

T-crystal dental sintering furnace is an advanced equipment specially designed for sintering small batch samples of zirconia denture crystals, structural ceramics, polymer ceramics and other laboratory samples.

  • Fully Automatic Program Control
  • Fast Heating & Cooling
  • Intuitive Touchscreen Interface
  • Multi-Stage Programmable Sintering

Introduction

T-crystal sintering furnace uses high-purity polycrystalline mullite fiber as the furnace material. It is light in weight, compact in size, and has a power of only 1.5 kW. It is suitable for use in small laboratories and even home-style working environments. It has been widely used in dental laboratories for zirconia sintering and laboratories for small-batch sintering.

t-crystal-denture-furnace

Features

It is specially designed for the sintering of small batch samples in laboratories such as zirconia denture crystallization, structural ceramics, and polymer ceramics.

The power is only 1.5 kW, no special high-power circuit is required, and the circuit in the home can be used.

The heating speed is fast, adjustable from 0-40℃/minute.

The 7-inch high-definition touch screen is easy to operate and can store 30 different process programs.

Standard Accessories

A silicon molybdenum rod, a corundum crucible, a pack of zirconium beads, and a fireproof brick.

Technical Parameters

Furnace size

maximum temperature

Operating temperature

Temperature control method

Thermocouple

Temperature control accuracy

rated power

net weight

Dimensions

100*100*100mm (width*height*depth)

1700℃ (not more than 2 hours)

1600℃

Intelligent 50-segment programmable control

Type B

+/-1℃

1.5kW

58kgs

410x380x610mm
