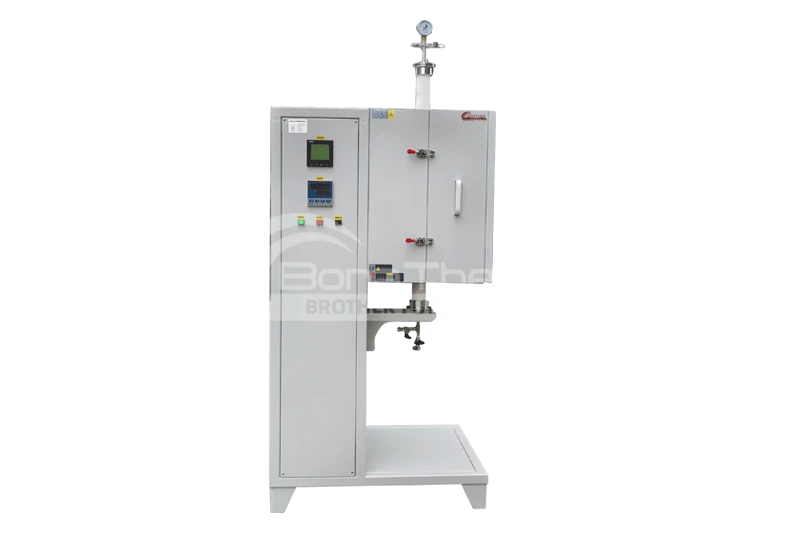

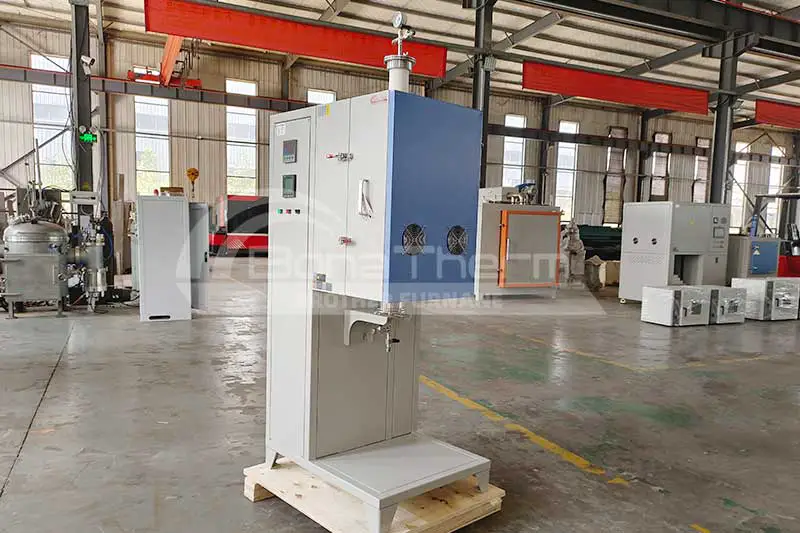

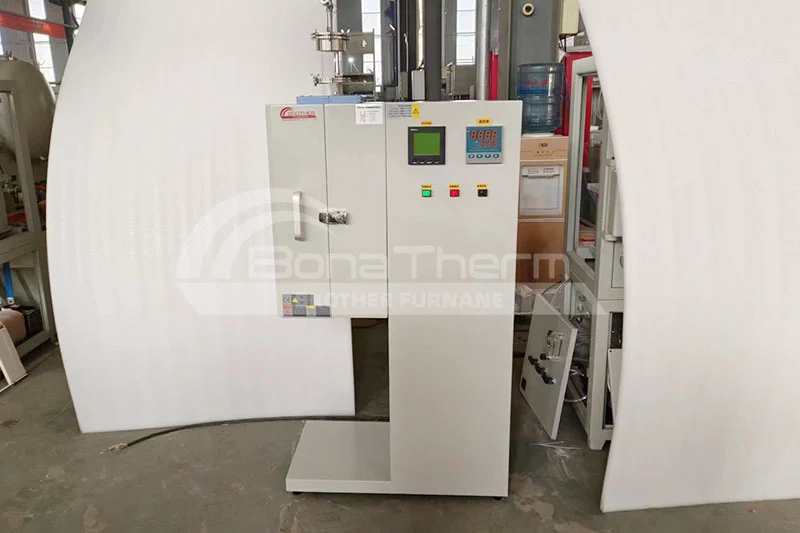

Vertical Tube Furnace

Vertical tube furnaces achieve uniform heating and temperature control of samples through a tubular heating chamber, and are commonly used in fields such as materials science and chemical engineering.

  • Vertical/Rotary/Multi-Temp Zone
  • Heating Rate ≤20℃/min
  • Provide Customized Services
  • Temp Control Accuracy 1℃

Introduction of Vertical Tube Furnace

Depending on the temperature, the furnace tube is made of high-purity quartz or alumina and equipped with a vacuum-sealing flange system. It is mainly suitable for pre-sintering, sintering, coating, and heating materials in vacuum or protective atmospheres at various temperatures. Solution to low-temperature deposition (CVD) process, preparation of carbon nanotubes and silicon nanowires, etc.

Vertical-Tube-FurnaceVertical-tube-furnace-priceVertical-tube-furnace

Features of Vertical Tube Furnace

  • Maximum temperature: 1200 ℃ ( HRE resistance wire heating)
  • 1400 ℃ (silicon carbon rod heating)
  • 1600 ℃ (silicon molybdenum rod heating)
  • Intelligent 50-segment programmable automatic control.
  • Furnace shell structure, double-layer air-cooling structure.
  • Stainless steel double-layer sealing flange.
  • Adjustable flange support structures at both ends extend the service life of the furnace tube.
  • Over-temperature protection function automatically cuts off power when the temperature exceeds the allowed set value.
  • Safety protection: Automatically cut off power when the furnace body leaks electricity.
  • Heating rate ≦20 ℃ /min .
  • Temperature control accuracy ±1 ℃.
  • Maximum vacuum degree -0.1MPa.
  • The molecular pump unit can be configured, and the vacuum degree can reach 7x10 -4 Pa.

Standard Accessories

● plugging tube 4 pcs; Thermocouple 1pcs; Furnace tube 1 pc; Vacuum pump 1 set

● vacuum flange 1 pc; Vacuum gauge 1pcs

Technical Parameters of Vertical Tube Furnace

Model

Dia*Heating zone

Power

Max working temperature

Thermocouple

Furnace tube material

Heating elements

BR-12NVT-40/300

40x300mm

3 KW

1100℃

K type

Quartz tube

Fe-Cr-Al-Mo wire

BR-12NVT-60/300

60x300mm

3 KW

BR-12NVT-80/300

80x300mm

5 KW

BR-12NVT-100/300

100x300mm

5 KW

BR-12NVT-120/300

120x300mm

6 KW

BR-12NVT-40/450

40x450mm

3 KW

BR-12NVT-60/450

60x450mm

3 KW

BR-12NVT-80/450

80x450mm

5 KW

BR-12NVT-100/450

100x450mm

5 KW

BR-12NVT-120/450

120x450mm

6 KW

Model

Dia*Heating zone

Power

Max working temperature

Thermocouple

Furnace tube material

Heating elements

BR-14SVT-40/300

40x300mm

4 KW

1300℃

S type

Alumina tube

Sic Heater

BR-14SVT-60/300

60x300mm

4 KW

BR-14SVT-80/300

80x300mm

4 KW

BR-14SVT-100/300

100x300mm

6 KW

BR-14SVT-120/300

120x300mm

6 KW

BR-14SVT-40/450

40x450mm

4 KW

BR-14SVT-60/450

60x450mm

4 KW

BR-14SVT-80/450

80x450mm

4KW

BR-14SVT-100/450

100x450mm

6 KW

BR-14SVT-120/450

120x450mm

6 KW

Model

Dia*Heating zone

Power

Max working temperature

Thermocouple

Furnace tube material

Heating elements

BR-16MVT-40/300

40x300mm

4 KW

1500℃

B type

Alumina tube

MoSi2 Heater

BR-16MVT-60/300

60x300mm

4 KW

BR-16MVT-80/300

80x300mm

4 KW

BR-16MVT-100/300

100x300mm

6 KW

BR-16MVT-120/300

120x300mm

6 KW

BR-16MVT-40/450

40x450mm

5 KW

BR-16MVT-60/450

60x450mm

5 KW

BR-16MVT-80/450

80x450mm

5 KW

BR-16MVT-100/450

100x450mm

9 KW

BR-16MVT-120/450

120x450mm

9 KW
